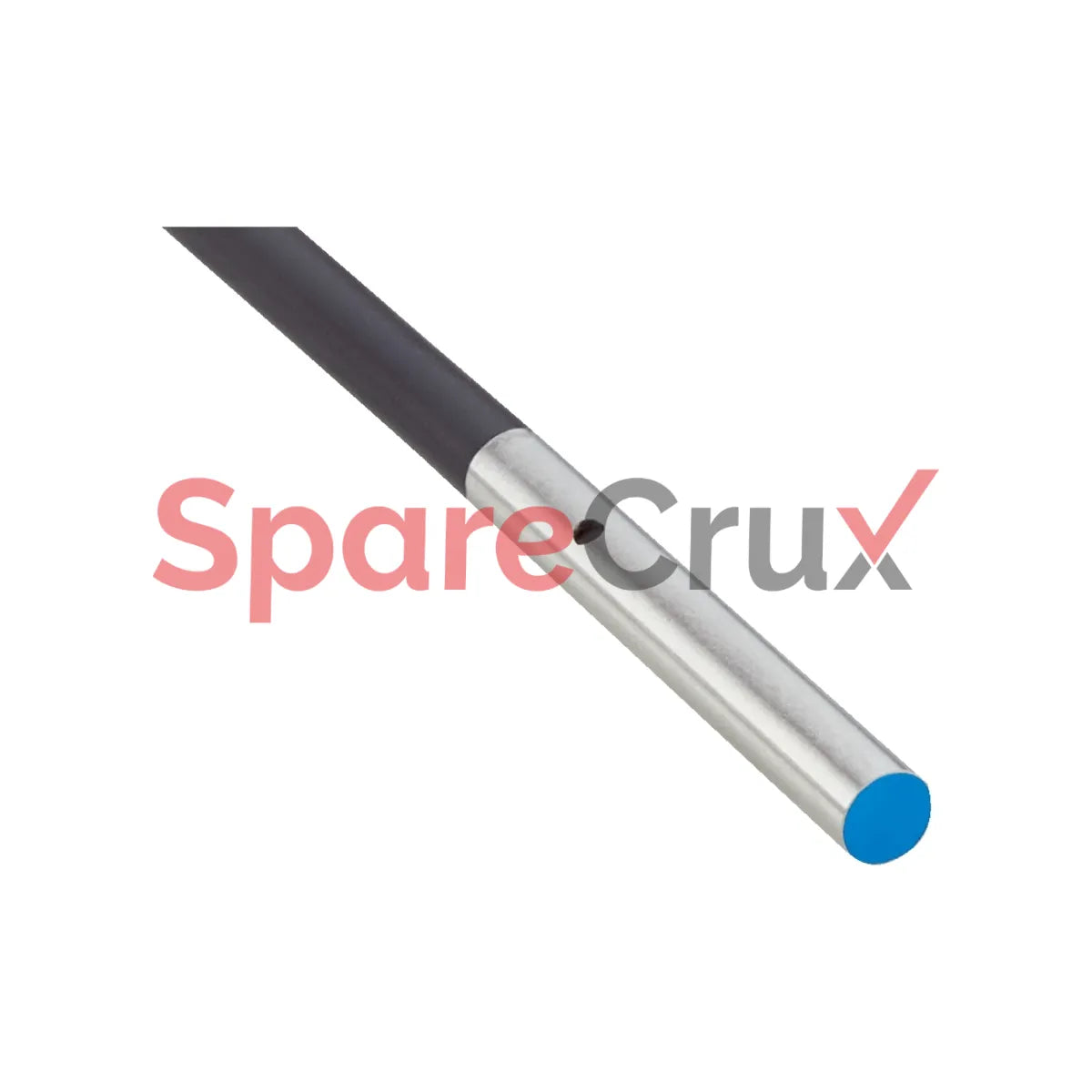

1103992 | SICK SENSORS | IHM04-1B5NSVU2K Inductive Proximity Sensor

₹ 4,050.46

₹ 3,432.60 (Excl. Tax)


Get Best Price on WhatsApp

Product Description

Housing Cylindrical
Housing Short-body
Diameter Ø 4 mm
Sensing range Sn 1.5 mm
Safe sensing range Sa 1.215 mm
Installation type Flush
Switching frequency 4,800 Hz
Connection type Cable, 3-wire, 2 m
Switching output NPN
Switching output detail NPN
Output function NO
Electrical wiring DC 3-wire
Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material Plastic, LCP
Housing length 12 mm



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1103992

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet
  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Cylindrical

Housing - Short-body

Diameter - Ø 4 mm

Sensing range (Sn) - 1.5 mm

Safe sensing range (Sa) - 1.215 mm

Installation type - Flush

Switching frequency - 4,800 Hz

Connection type - Cable, 3-wire, 2 m

Switching output - NPN

Switching output detail - NPN

Supply voltage - 10 V DC ... 30 V DC

Ripple - ≤ 20 % 1)

Voltage drop - ≤ 2 V 2)

Time delay before availability - ≤ 10 ms

Hysteresis - 1 % ... 15 %

Reproducibility - ≤ 2.5 % 3)

Temperature drift (of Sr) - ≤ 10 %

EMC - EN 60947-5-2

Continuous current (Ia) - ≤ 200 mA

Cable material - PUR

MTTFD - 1,662 years

DCavg - 0 %

Mission time (TM) - 20 years

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

IO-Link certificate - ✔

ECLASS 5.1.4 - 27270101

ECLASS 6.0 - 27270101

ECLASS 7.0 - 27270101

ECLASS 8.0 - 27270101

ECLASS 9.0 - 27270101

ECLASS 10.0 - 27270101

ECLASS 11.0 - 27270101

ECLASS 12.0 - 27274001
