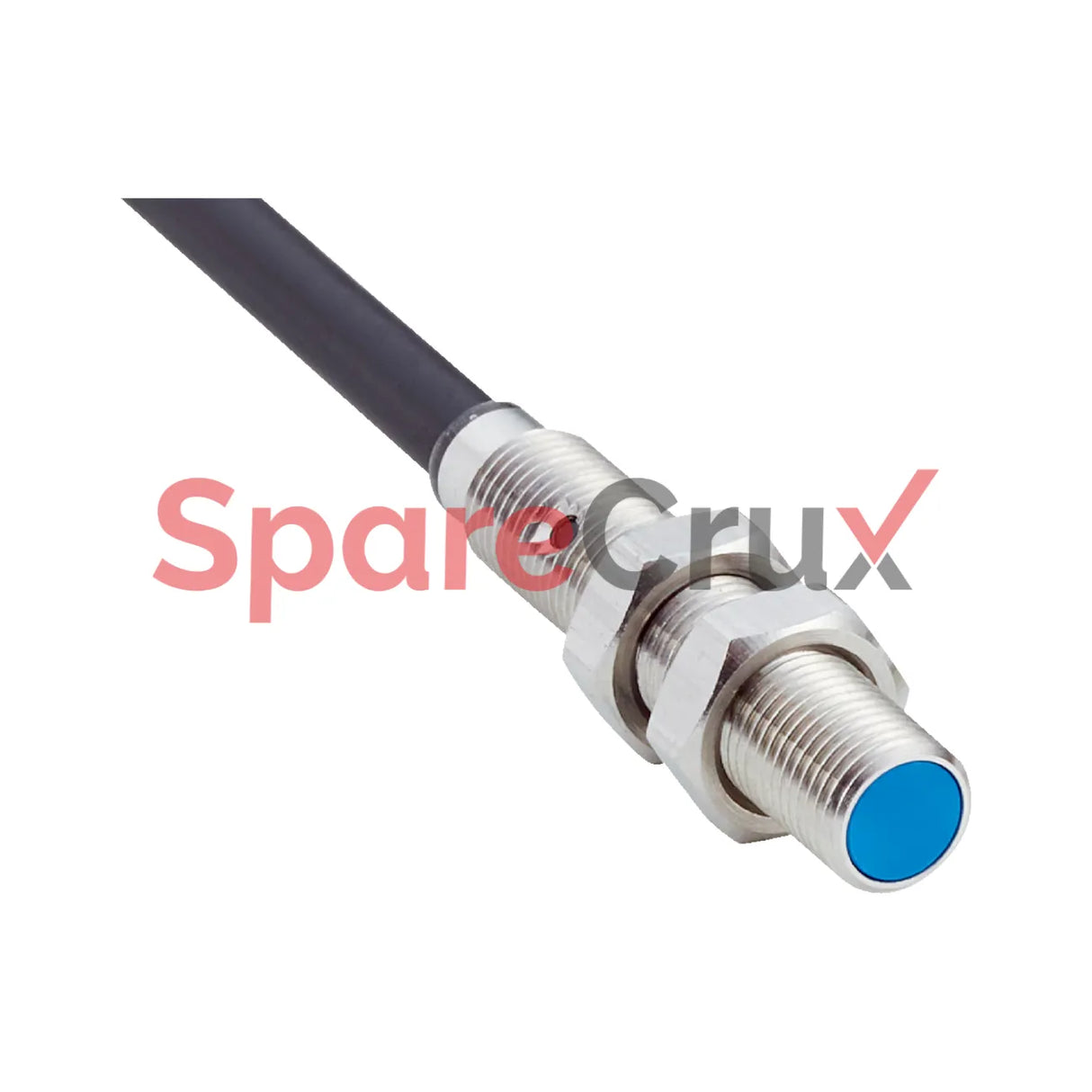

1101013 | SICK SENSORS | IMM05-1B5PSVU2S Inductive Proximity Sensor

₹ 3,735.05

₹ 3,165.30 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Housing Metric
Housing Standard design
Thread size M5 x 0.5
Diameter Ø 5 mm
Sensing range Sn 1.5 mm
Safe sensing range Sa 1.215 mm
Installation type Flush
Switching frequency 4,800 Hz
Connection type Cable, 3-wire, 2 m
Switching output PNP
Switching output detail PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material Plastic, LCP
Housing length 25 mm
Thread length 23 mm
Tightening torque, max. ≤ 1.5 Nm



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1101013

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Standard design

Thread size - M5 x 0.5

Diameter - Ø 5 mm

Sensing range (Sn) - 1.5 mm

Safe sensing range (Sa) - 1.215 mm

Installation type - Flush

Switching frequency - 4,800 Hz

Connection type - Cable, 3-wire, 2 m

Switching output - PNP

Switching output detail - PNP

Supply voltage - 10 V DC ... 30 V DC

Ripple - ≤ 20%

Voltage drop - ≤ 2 V

Time delay before availability - ≤ 10 ms

Hysteresis - 1% ... 15%

Reproducibility - ≤ 2.5%

Temperature drift (of Sr) - ≤ 10%

EMC - EN 60947-5-2

Continuous current (Ia) - ≤ 200 mA

Cable material - PUR

Conductor size - 0.14 mm²

MTTFD - 1,350 years

DCavg - 0%

TM (mission time) - 20 years

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

IO-Link certificate - ✔

Note - The values are reference values which may vary

St37 steel (Fe) - 1

Stainless steel (V2A, 304) - Approx. 0.76

Aluminum (Al) - Approx. 0.47

Copper (Cu) - Approx. 0.4

Brass (Br) - Approx. 0.54
