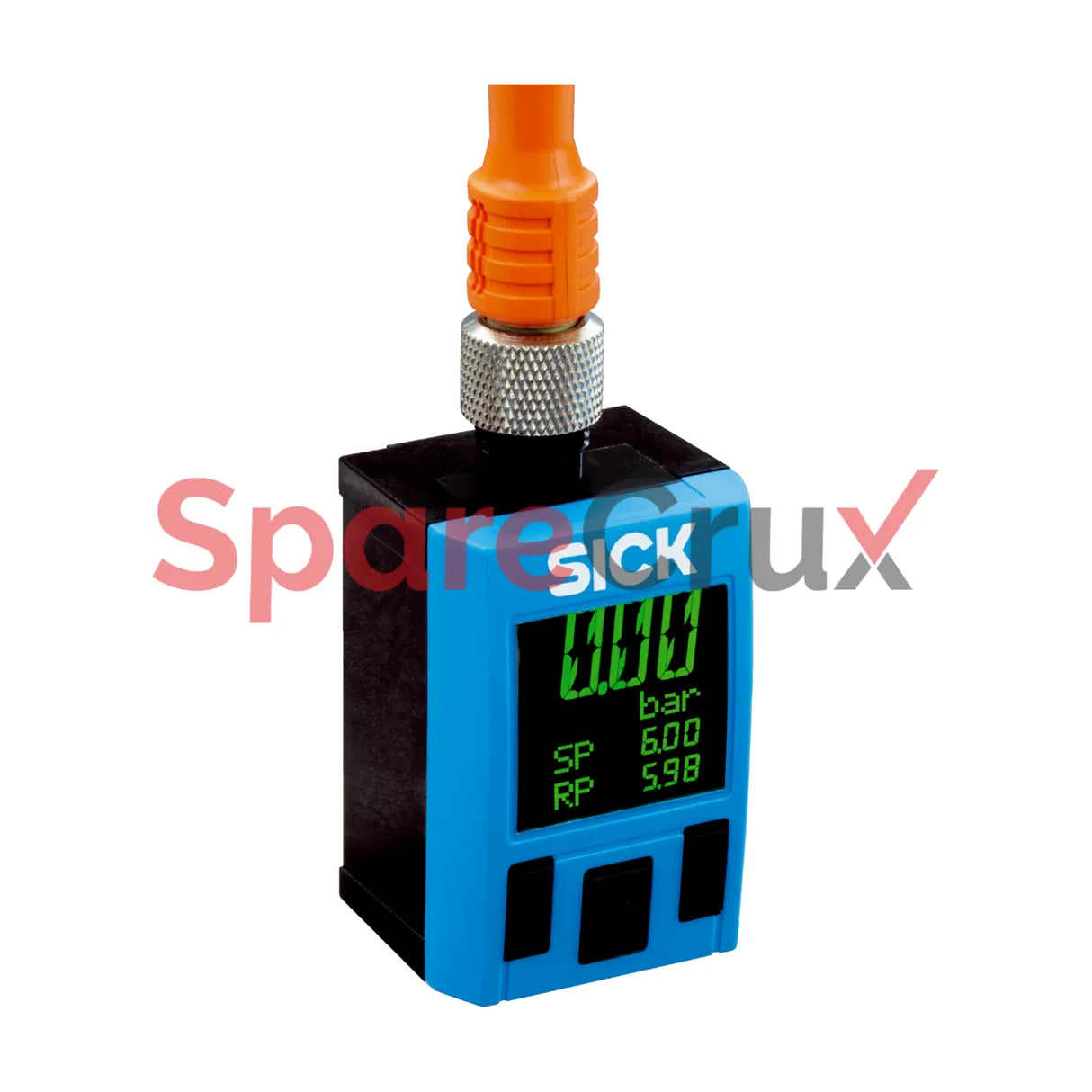

1077856 | SICK SENSORS | PAC50-FGB Pressure Sensor

₹ 15,522.19

₹ 13,154.40 (Excl. Tax)

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1077856

Original Equipment Manufacturer

SICK SENSORS

Descripción



Medium Dry compressed air
Pressure type Gauge pressure
Pressure unit bar
Measuring range –1 bar ... 10 bar
Overpressure safety 15 bar
Process temperature 0 °C ... +60 °C
Non-linearity ≤ ± 0.5 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2
Accuracy ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2))
Setting accuracy of switching outputs ≤ ± 0.2 % of span
Non-repeatability ≤ ± 0.2 % of the span
Rated temperature range +10 °C ... +60 °C



SICK SENSORS 1077856 PAC50-FGB Pressure Sensor
SICK SENSORS

1077856 | SICK SENSORS | PAC50-FGB Pressure Sensor

₹ 13,154.40



Medium Dry compressed air
Pressure type Gauge pressure
Pressure unit bar
Measuring range –1 bar ... 10 bar
Overpressure safety 15 bar
Process temperature 0 °C ... +60 °C
Non-linearity ≤ ± 0.5 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2
Accuracy ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2))
Setting accuracy of switching outputs ≤ ± 0.2 % of span
Non-repeatability ≤ ± 0.2 % of the span
Rated temperature range +10 °C ... +60 °C
