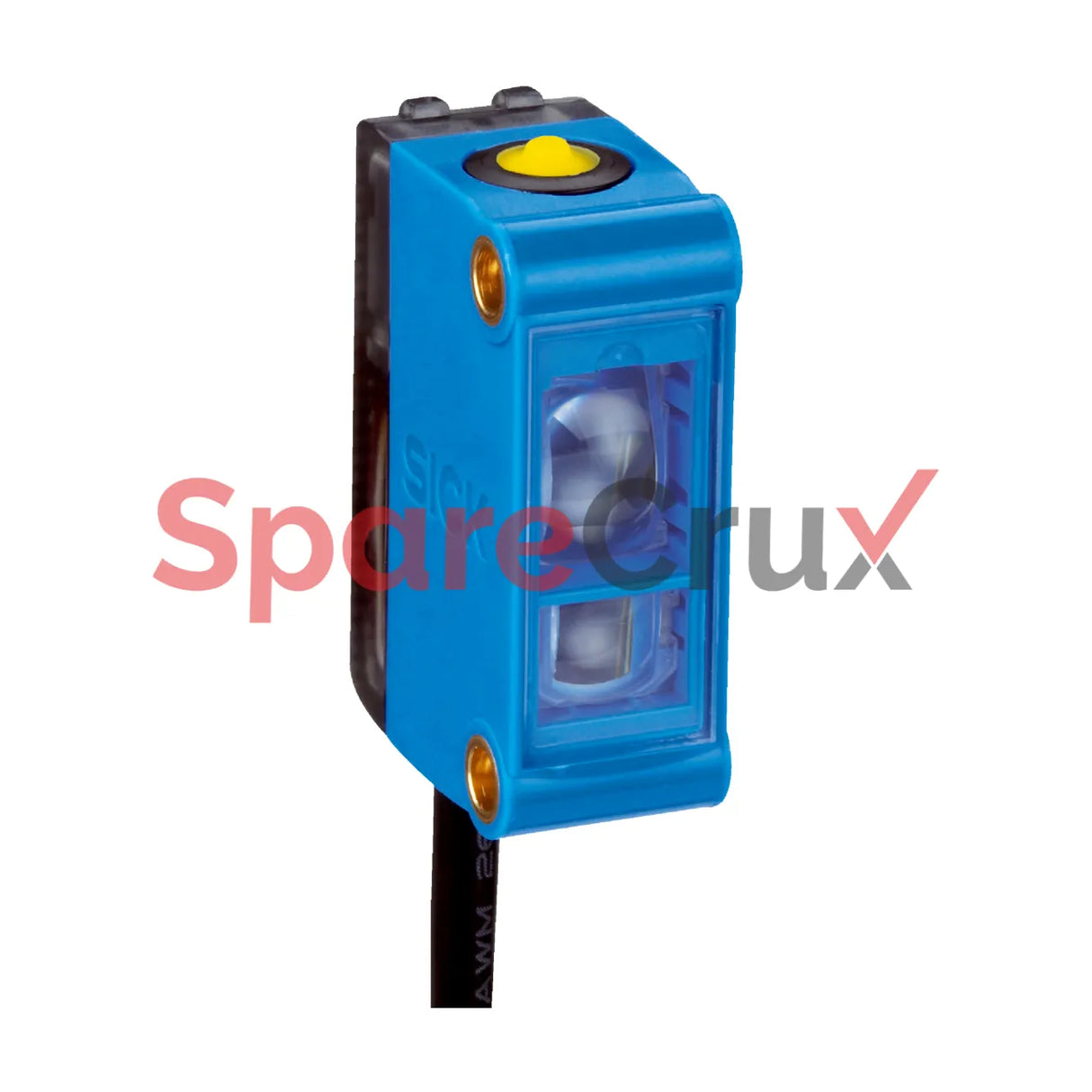

1072002 | SICK SENSORS | KTM-WP11282P Contrast Sensor

₹ 25,378.61

₹ 21,507.30 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Sensing distance ≤ 12.5 mm
Sensing distance tolerance ± 3 mm
Housing design Small
Light source LED, RGB 1)
Wave length 470 nm, 525 nm, 625 nm
Light emission Long side of housing
Light spot size 1.6 mm x 9.5 mm
Light spot direction Vertical 2)
Receiving filters None
Housing material ABS
Display

LED indicator green: power on

LED indicator, yellow: Status switching output Q
Optics material PMMA
Connection type Cable with M12 male connector, 4-pin, 0.2 m
Weight 20 g



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1072002

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing design - Small

Dimensions (W × H × D) - 12 mm × 31.5 mm × 21 mm

Light source - LED, RGB¹

Light emission - Long side of housing

Light spot size - 1.6 mm × 9.5 mm

Light spot direction - Vertical²

Receiving filters - None

Wave length - 470 nm, 525 nm, 625 nm

Sensing distance - ≤ 12.5 mm

Sensing distance tolerance - ± 3 mm

Supply voltage - 12 V DC ... 24 V DC¹

Ripple - ≤ 5 Vpp²

Current consumption - < 50 mA³

Switching frequency - 15 kHz⁴

Response time - 32 µs

Jitter - 15 µs

Switching output - PNP

Housing material - ABS

Optics material - PMMA

Weight - 20 g

Not applicable for this product

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

Photobiological safety (IEC EN 62471) - ✔

ECLASS 5.1.4 - 27270906

ECLASS 6.0 - 27270906

ECLASS 7.0 - 27270906

ECLASS 8.0 - 27270906

ECLASS 9.0 - 27270906

ECLASS 10.0 - 27270906

ECLASS 11.0 - 27270906

ECLASS 12.0 - 27270906

ECLASS 13.0 - 27270906
