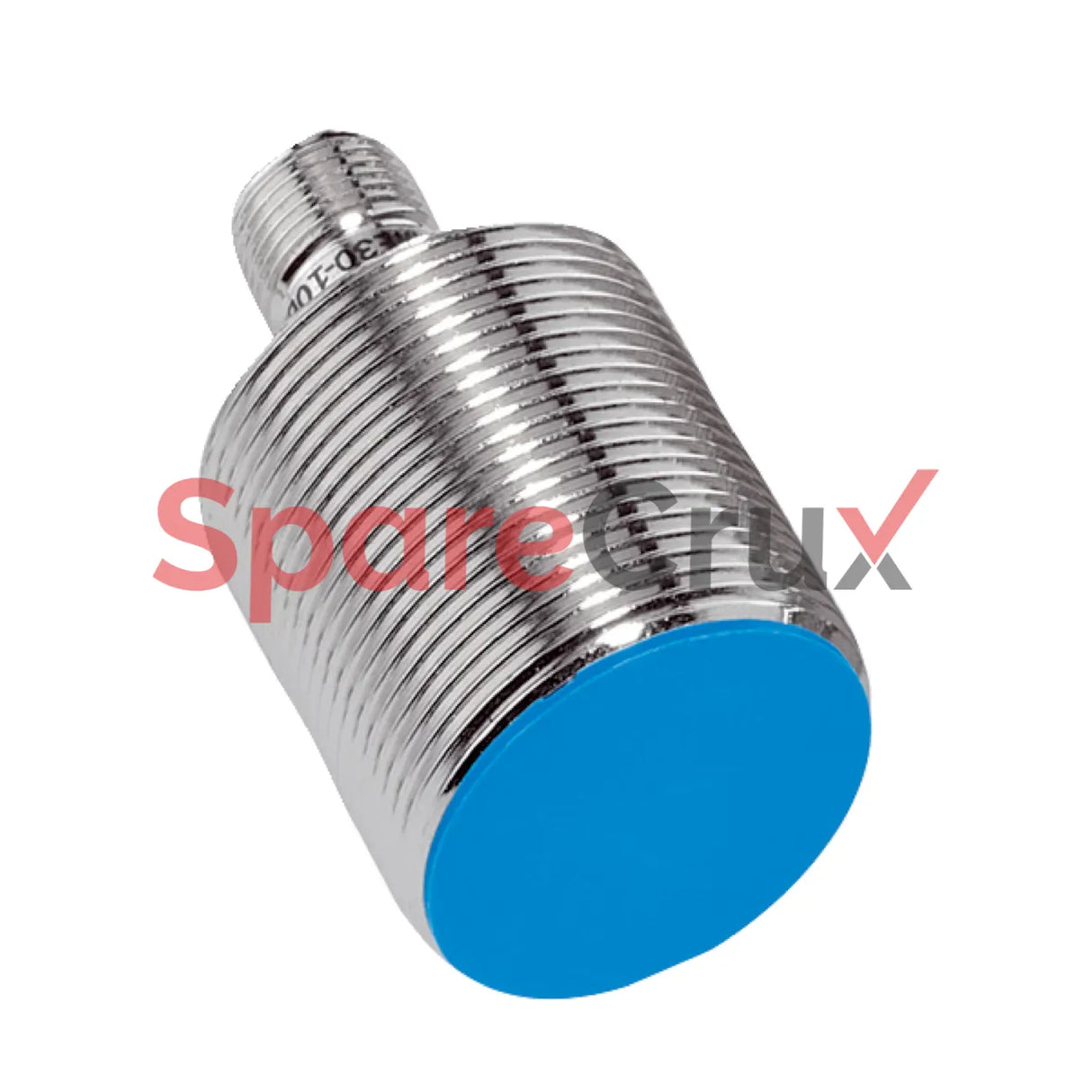

1071285 | SICK SENSORS | IME30-20BPSZC0K Inductive Proximity Sensor

₹ 9,608.97

₹ 8,143.20 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Housing Metric
Housing Short-body
Thread size M30 x 1.5
Diameter Ø 30 mm
Sensing range Sn 20 mm
Safe sensing range Sa 16.2 mm
Installation type Quasi-flush
Switching frequency 200 Hz
Connection type Male connector M12, 4-pin
Switching output PNP
Switching output detail PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Housing material Brass, nickel-plated
Sensing face material Plastic, PA 66
Housing length 52 mm
Thread length 35 mm



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1071285

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing – Metric

Housing – Short-body

Thread size – M30 x 1.5

Diameter – Ø 30 mm

Sensing range Sn – 20 mm

Safe sensing range Sa – 16.2 mm

Installation type – Quasi-flush

Switching frequency – 200 Hz

Connection type – Male connector M12, 4-pin

Switching output – PNP

Supply voltage – 10 V DC ... 30 V DC

Ripple – ≤ 10 %

Voltage drop – ≤ 2 V 1)

Time delay before availability – ≤ 200 ms

Warm-up time – 60 s

Hysteresis – 1 % ... 15 %

Reproducibility – ≤ 5 % 2) 3)

Temperature drift (of Sr) – ± 10 %

EMC – According to EN 60947-5-2

Continuous current Ia – ≤ 200 mA

No load current – ≤ 10 mA

MTTFD – 1,735 years

DCavg – 0 %

EU declaration of conformity – ✔

UK declaration of conformity – ✔

ACMA declaration of conformity – ✔

Moroccan declaration of conformity – ✔

China RoHS – ✔

cULus certificate – ✔

Note: The values are reference values which may vary

St37 steel (Fe) – 1

Stainless steel (V2A, 304) – Approx. 0.78

Aluminum (Al) – Approx. 0.35

Copper (Cu) – Approx. 0.27

Brass (Br) – Approx. 0.38
