SPARECRUX is NOT an authorized distributor for SICK SENSORS

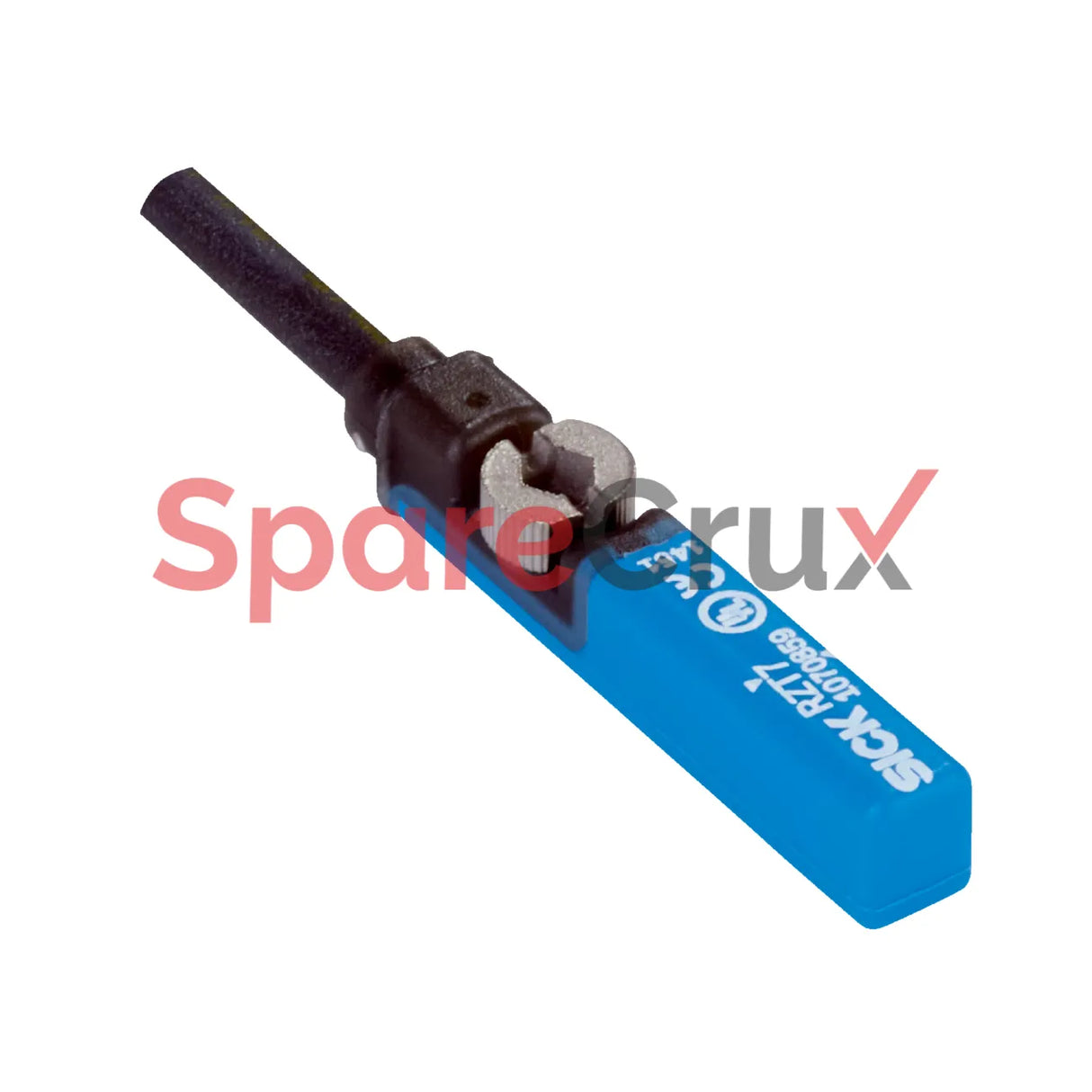

1070870 | SICK SENSORS | RZT7-03ZWS-KUB Cylinder Sensors

₹ 1,157.34

₹ 980.80 (Excl. Tax)

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1070870

Original Equipment Manufacturer

SICK SENSORS

Descripción
Housing length 32.5 mm
Switching output Reed
Switching frequency 400 Hz
Output function NO
Electrical wiring AC/DC 2-wire
Supply voltage 5 V AC/DC ... 230 V AC/DC 1)
Rated insulation voltage Ui 230 V
Rated impulse withstand voltage Uimp 4 kV
Voltage drop ≤ 3.5 V
Continuous current Ia ≤ 100 mA 2)
Switching capacity ≤ 6 W
Protection class II
Response sensitivity, typ. 3 mT
Overrun distance, typ. 10 mm
Reproducibility ≤ 0.1 mT 3)



SICK SENSORS 1070870 RZT7-03ZWS-KUB Cylinder Sensors
SICK SENSORS

1070870 | SICK SENSORS | RZT7-03ZWS-KUB Cylinder Sensors

₹ 980.80
Housing length 32.5 mm
Switching output Reed
Switching frequency 400 Hz
Output function NO
Electrical wiring AC/DC 2-wire
Supply voltage 5 V AC/DC ... 230 V AC/DC 1)
Rated insulation voltage Ui 230 V
Rated impulse withstand voltage Uimp 4 kV
Voltage drop ≤ 3.5 V
Continuous current Ia ≤ 100 mA 2)
Switching capacity ≤ 6 W
Protection class II
Response sensitivity, typ. 3 mT
Overrun distance, typ. 10 mm
Reproducibility ≤ 0.1 mT 3)
