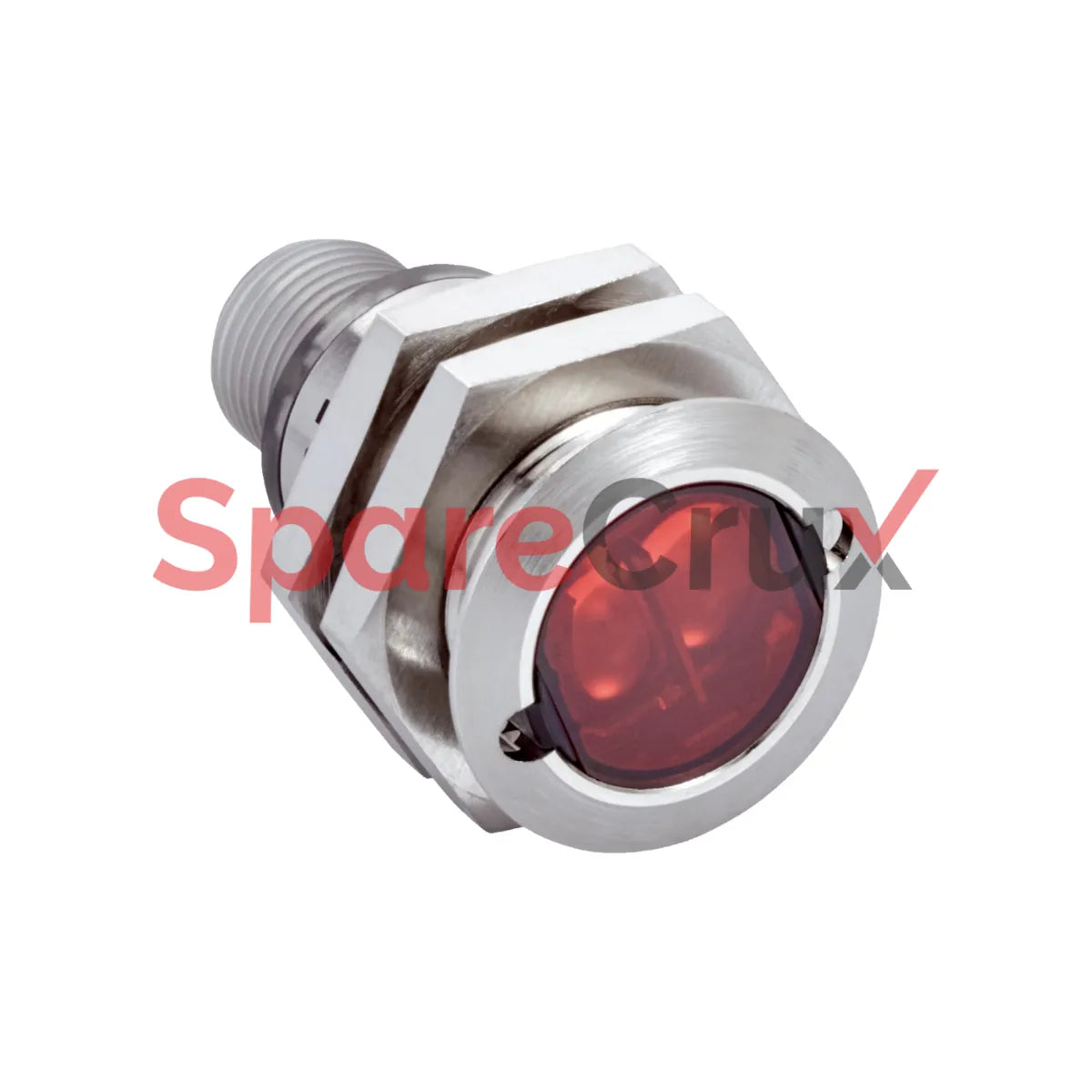

1059486 | SICK SENSORS | GRTE18S-F234Z Photoelectric Proximity Sensor

Name: 1059486 | SICK SENSORS | GRTE18S-F234Z Photoelectric Proximity Sensor
Brand: SICK SENSORS
Price: 3107.70 INR
Availability: InStock

₹ 3,667.08

₹ 3,107.70 (Excl. Tax)

Get Best Price on WhatsApp

Product Description

Functional principle	Photoelectric proximity sensor
Functional principle detail	Energetic
Dimensions (W x H x D)	18 mm x 18 mm x 38.1 mm
Housing design (light emission)	Cylindrical
Thread diameter (housing)	M18 x 1
Optical axis	Axial, fully flush
Sensing range max.	5 mm ... 550 mm ¹⁾
Sensing range	10 mm ... 400 mm ¹⁾
Type of light	Visible red light
Light source	PinPoint LED ²⁾
Light spot size (distance)	Ø 9 mm (400 mm)
Wave length	650 nm

Housing material	Metal, Nickel-plated brass and ABS
Optics material	Plastic, PMMA
Enclosure rating	IP67
Items supplied	Fastening nuts (2 x)
Electromagnetic compatibility (EMC)	EN 60947-5-2

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1059486

Original Equipment Manufacturer

SICK SENSORS

Product Datasheet

100% Tested & Verified Products
GST Invoice Available
Warranty Included
Trusted by 5000+ Industrial Buyers

Functional principle - Photoelectric proximity sensor

Functional principle detail - Energetic

Dimensions (W × H × D) - 18 mm × 18 mm × 38.1 mm

Housing design (light emission) - Cylindrical

Thread diameter (housing) - M18 × 1

Optical axis - Axial, fully flush

Sensing range max. - 5 mm … 550 mm 1)

Sensing range - 10 mm … 400 mm 1)

Type of light - Visible red light

Light source - PinPoint LED 2)

Light spot size (distance) - Ø 9 mm (400 mm)

Wave length - 650 nm

Adjustment - Potentiometer, 270°

Supply voltage UB - 10 V DC … 30 V DC 1)

Ripple - < 5 Vpp 2)

Current consumption - 30 mA

Switching output - PNP

Switching mode - Dark switching

Signal voltage PNP HIGH/LOW - VS - (≤ 3 V) / approx. 0 V

Output current Imax. - ≤ 100 mA 3)

Response time - < 1,000 µs 4)

Switching frequency - 500 Hz 5)

Connection type - Connector M12, 3-pin

Not applicable for this product

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

ECOLAB certificate - ✔

cULus certificate - ✔

Photobiological safety (DIN EN 62471) certificate - ✔

ECLASS 5.1.4 - 27270902

ECLASS 6.0 - 27270902

ECLASS 7.0 - 27270902

ECLASS 8.0 - 27270902

ECLASS 9.0 - 27270902

ECLASS 10.0 - 27270902

ECLASS 11.0 - 27270902

ECLASS 12.0 - 27270902

ECLASS 13.0 - 27270902

ECLASS 14.0 - 27270902
