SPARECRUX is NOT an authorized distributor for BUSSMANN

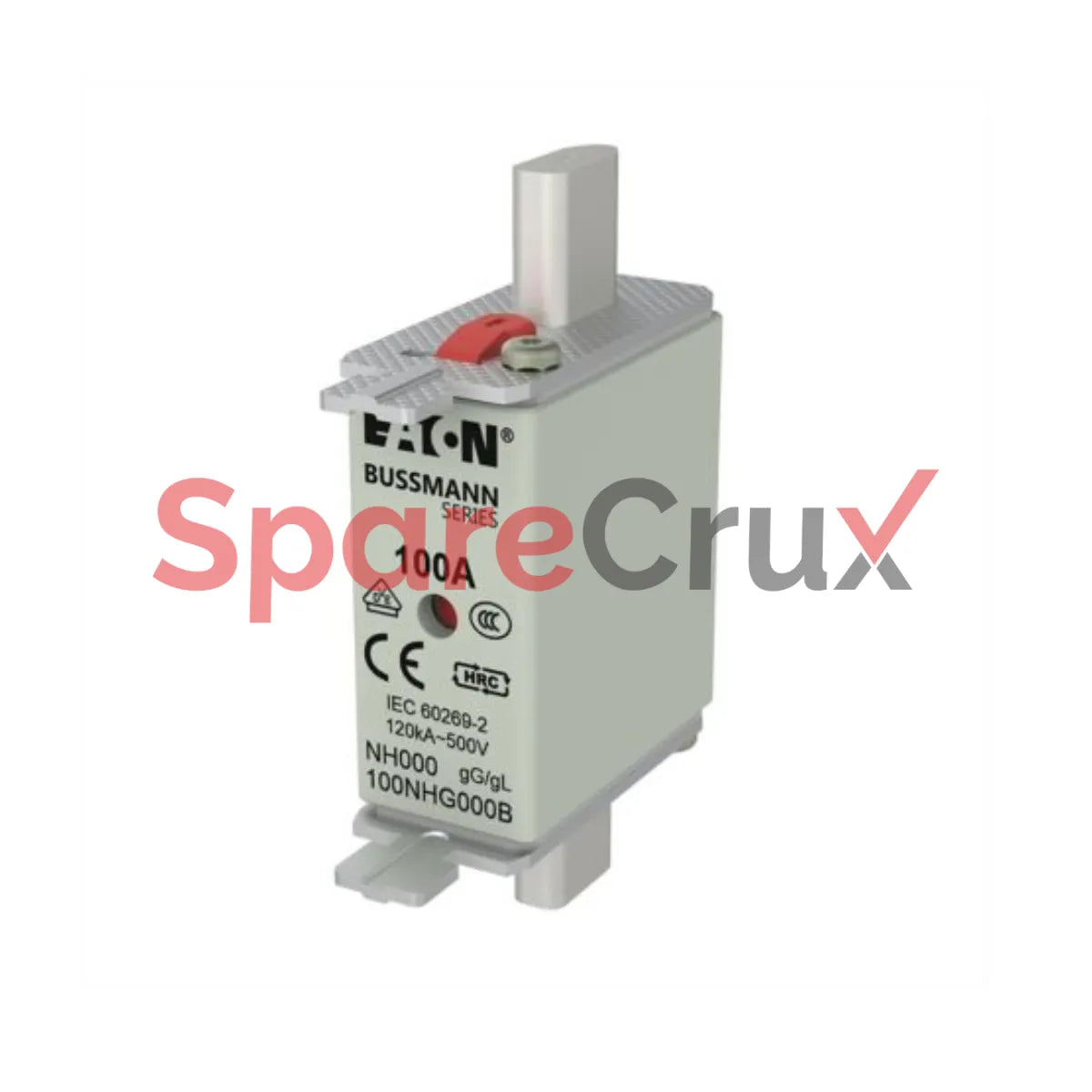

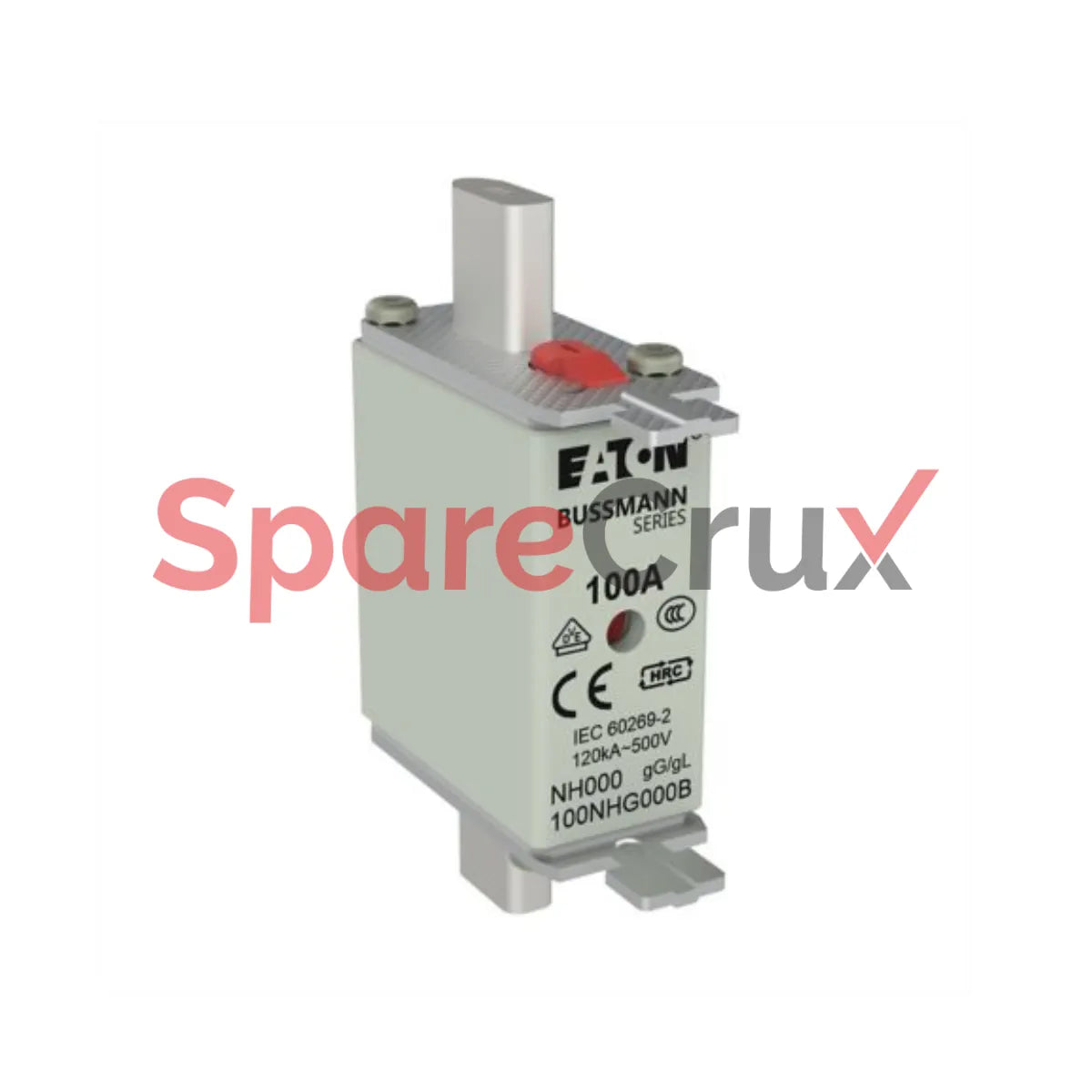

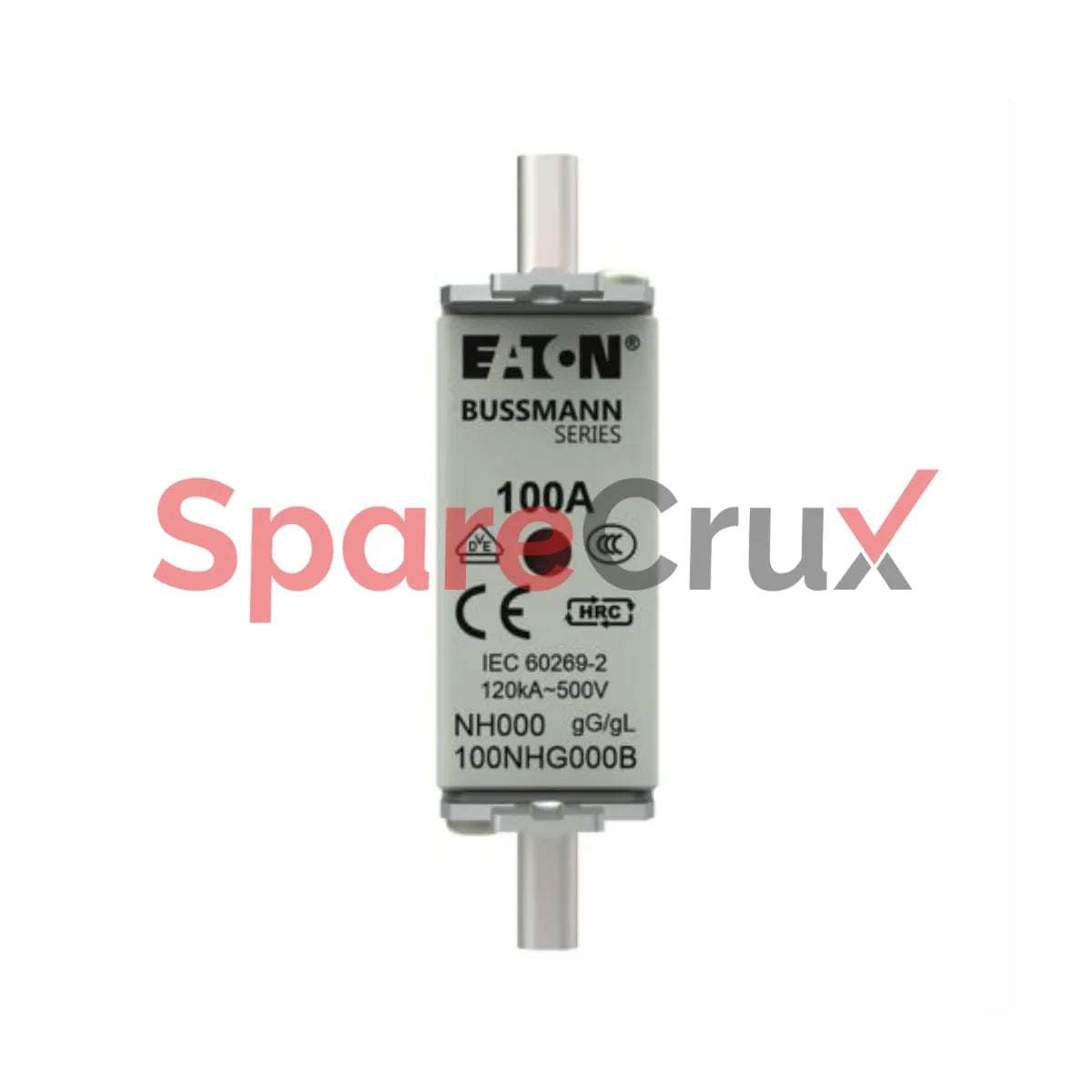

100NHG000B | BUSSMANN | NH FUSE 100A 500V SIZE 000 GG MGL

₹ 7,056.08

₹ 5,979.73 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

100NHG000B

Original Equipment Manufacturer

BUSSMANN

Descripción
Specification Details
Brand / Series Eaton Bussmann, Low Voltage NH Fuse
Catalog Number / Model 100NHG000B
Model Code NH FUSE 100A 500V SIZE 000 GG MGL
UPC 051712625869
EAN 5027590187268
Fuse Type / Category Low Voltage NH Fuse, Square Body with Knife Blade Contacts, NH000
Rated Current 100 A
Rated Voltage AC 500 V
Current Type AC
Class / Utilization Category Class gG/gL, gL/gG (cable protection/equipment protection)
Breaking Capacity / Interrupt Rating 120 kA / 120 kAIC
Rated Switching Capacity 120 kA
Fuse Indicator Combination fuse status indicator
Insulated Metal Gripping Lugs (IMGL) No
Connection Blade end
Construction / Fuse Size NH000, Square Body
Fuse Shape Knife blade contacts, Square body
Length / Depth 79 mm
Height 51 mm
Width 21 mm
Weight 119.333 g
Material / Contact Material Ceramic body, Metal plated copper
Fitted With Metal gripping lugs
Power Loss at Rated Current / Watt Losses 7.4 W
Packaging Type / Quantity Standard, 3 pieces
Suitable For Microswitch 170H0236, EBF Vertical fuse rail, EBV Vertical fuse switch-disconnectors, EBH Size 000 Horizontal fuse switch-disconnectors
Voltage Type AC
Special Features Live gripping lugs
Application Industrial, Utilities, Solar, Wind
Compliances / Certifications CE Marked, RoHS Compliant, IEC 60269-1, IEC 60269-2, DIN 43620
Fuse System (IEC) Fuse system A
