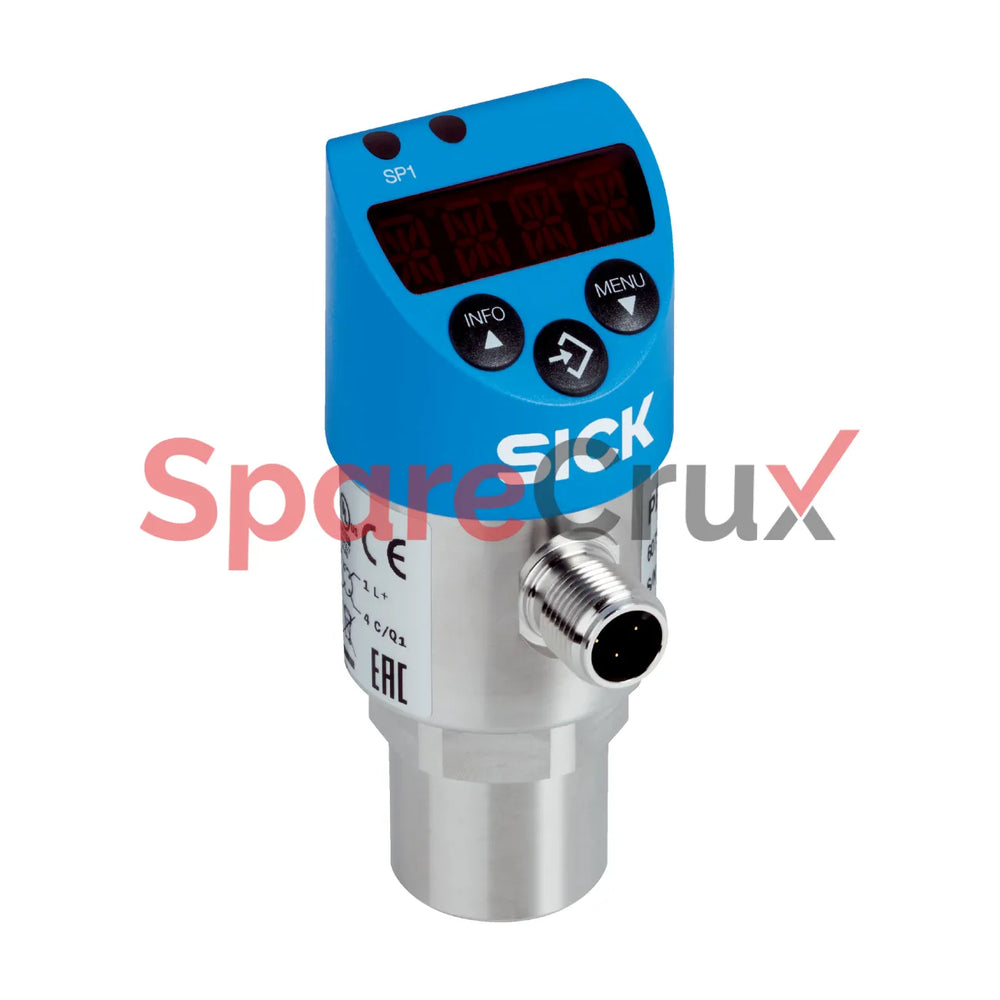

6073970 | SICK SENSORS | PBS2-RB016SG2SS0NMA0Z Pressure Sensor

₹ 49,675.05

₹ 42,097.50 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Medium Liquid, gaseous
Pressure type Gauge pressure
Pressure unit

bar

psi
Measuring range

0 bar ... 16 bar

0 psi ... 232 psi
Process temperature –20 °C ... +85 °C
Maximum ohmic load RA 4 mA ... 20 mA (RA ≤ 0.5 kOhm), 0 V ... 10 V, 3-wire (RA > 10 kOhm)
Ambient temperature, operation –20 °C ... +80 °C
Storage temperature –20 °C ... +70 °C
Relative humidity ≤ 75 %
Shock load 50 g, 6 ms according to IEC 60068-2-27 (mechanical shock)
Vibration load 20 g, 10 Hz ... 2,000 Hz (IEC 60068-2-6, at resonance)



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

6073970

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Medium - Liquid, gaseous

Pressure Type - Gauge pressure

Pressure Unit - bar, psi

Measuring Range - 0 to 16 bar; 0 to 232 psi

Process Temperature - –20 °C to +85 °C

Maximum Ohmic Load (RA) - 4–20 mA (RA ≤ 0.5 kΩ); 0–10 V, 3-wire (RA > 10 kΩ)

Zero Point Adjustment - Maximum ±3% of span

Output Signal - IO-Link / PNP / NPN + 4–20 mA / 0–10 V

Rotatable Housing - Display against housing with electrical connection: 330°; Housing against process connection: 320°

Display - 14-segment LED, red, 4-digit, character height 9 mm; electronically rotatable by 180°; Update rate: 1,000 ms, 500 ms, 200 ms, 100 ms (adjustable)

Communication Interface - IO-Link

Communication Interface Detail - IO-Link V1.1

Process Connection - G ¼ female (EN 837)

Wetted Parts - Process connection: 316L stainless steel; Measuring chamber: 316L stainless steel

Internal Transmission Fluid - Silicone oil (only with pressure ranges < 0–10 bar and ≤ 0–25 bar abs)

Pressure Port - Standard

Housing Material - Lower body: Stainless steel 304; Plastic head: PC + ABS; Buttons: TPE-E; Display window: PC

Connection Type - M12 round connector × 1, 4-pin

Supply Voltage - 15 V DC to 35 V DC

Not applicable for this product

EU Declaration of Conformity - ✔

UK Declaration of Conformity - ✔

China RoHS - ✔

China Compulsory Product Certification (CCC) Exempt - ✔

cULus Certificate - ✔

IO-Link Certificate - ✔

Information According to Art. 3 of Data Act (Regulation EU 2023/2854) - ✔

ECLASS 5.1.4 - 27200620

ECLASS 6.0 - 27200620

ECLASS 7.0 - 27200620

ECLASS 8.0 - 27200620

ECLASS 9.0 - 27200620

ECLASS 10.0 - 27200620

ECLASS 11.0 - 27200620

ECLASS 12.0 - 27200620

ECLASS 13.0 - 27200620
