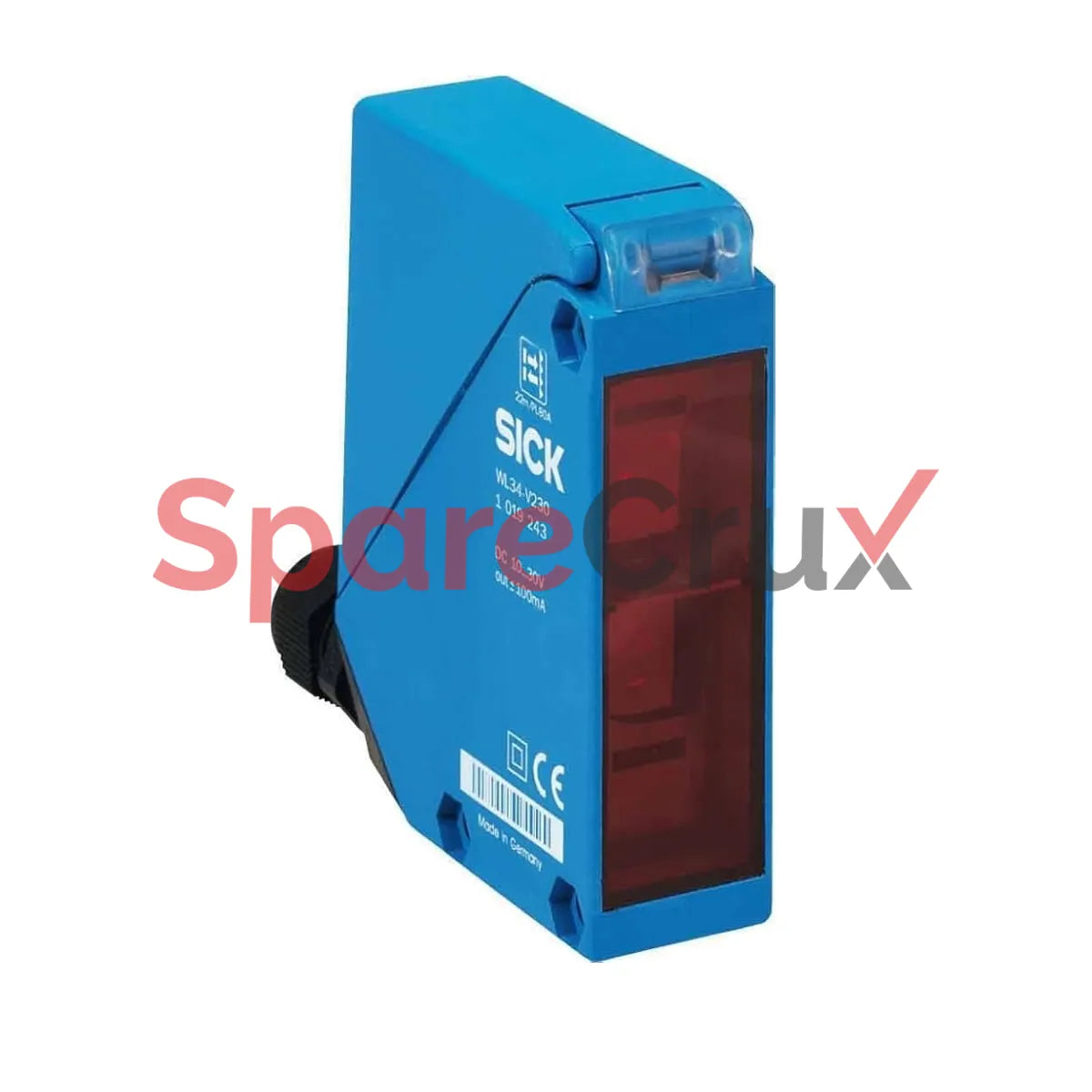

1019243 | SICK SENSOR | Photoelectric Retro-Reflective Sensor

₹ 18,981.65

₹ 16,086.15 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1019243

Original Equipment Manufacturer

SICK SENSORS

Descripción
Specification Details
Manufacturer SICK
Model / Part Number WL34-V230 (1019243)
Sensor Type Photoelectric — Retro-reflective (Dual-lens) :contentReference[oaicite:3]{index=3}
Sensing Range 0.03 m … 15 m (typical) / up to 22 m (max, with reflector) :contentReference[oaicite:4]{index=4}
Light Source (Wavelength) Visible red LED, 660 nm :contentReference[oaicite:5]{index=5}
Supply Voltage 10 … 30 V DC :contentReference[oaicite:6]{index=6}
Current Consumption ≈ 50 mA :contentReference[oaicite:7]{index=7}
Output Configuration NPN or PNP (selectable), Light-ON / Dark-ON selectable :contentReference[oaicite:8]{index=8}
Max Output Current ≤ 100 mA :contentReference[oaicite:9]{index=9}
Switching Frequency / Response Time Up to 1,000 Hz, response time ≤ 500 μs :contentReference[oaicite:10]{index=10}
Connection Type Terminal connection with M16 gland :contentReference[oaicite:11]{index=11}
Housing / Material Plastic (ABS) housing, rectangular design :contentReference[oaicite:12]{index=12}
Enclosure / Protection Rating IP67 (suitable for industrial / harsh environments) :contentReference[oaicite:13]{index=13}
Operating Temperature Range -40 °C … +60 °C (storage: -40 … +75 °C) :contentReference[oaicite:14]{index=14}
Dimensions (W × H × D) 27 mm × 92 mm × 70 mm :contentReference[oaicite:15]{index=15}
Weight ≈ 140 g :contentReference[oaicite:16]{index=16}
Special Features Selectable light / dark switching; NPN/PNP toggle; dual-lens for retro-reflective detection; polarity, interference- and short-circuit protection on output; high ambient-light immunity :contentReference[oaicite:17]{index=17}
