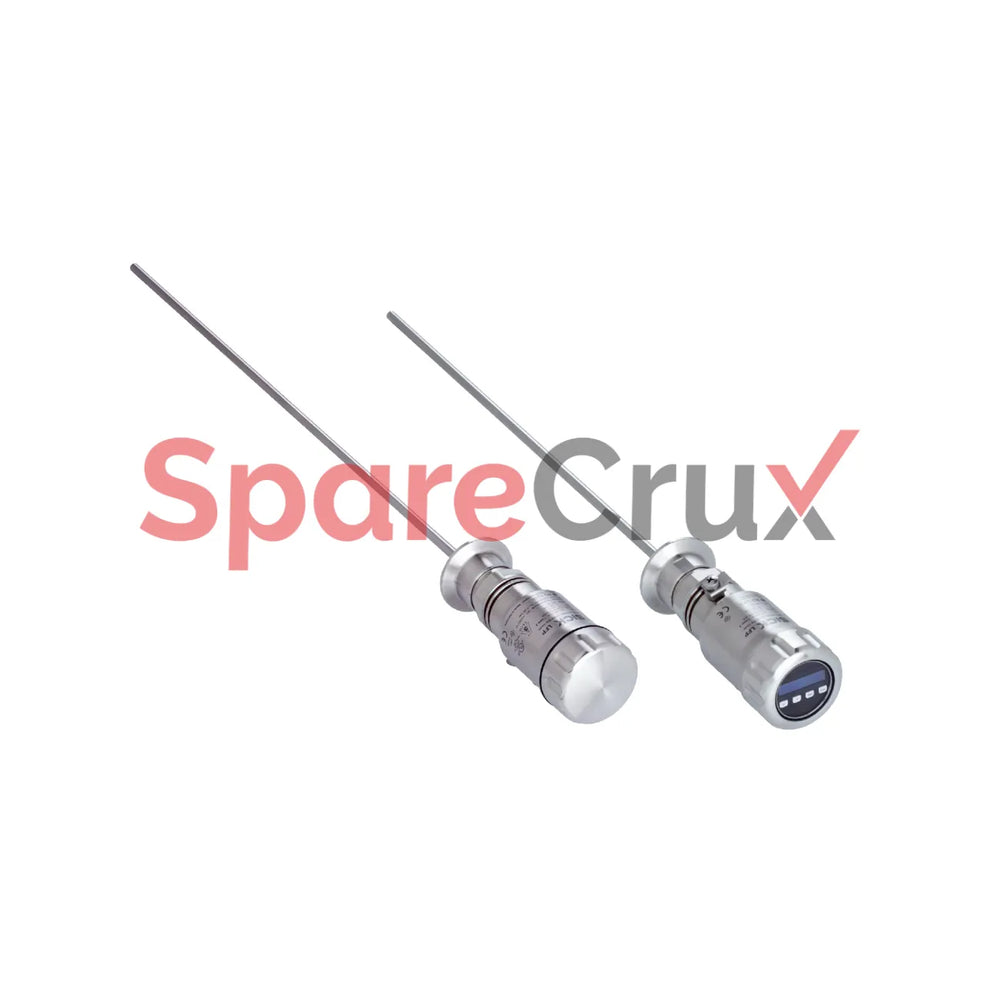

1059417 | SICK SENSORS | LFP1200-N1NMB Level Sensor

₹ 123,016.77

₹ 104,251.50 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Medium Fluids
Measurement Switch, Continuous
Design Standard
Probe type Rod probe in hygienic design
Probe length 1,200 mm
Process pressure –1 bar ... 16 bar
Process temperature –20 °C ... +150 °C
Communication interface IO-Link
Supply voltage 12 V DC ... 30 V DC 1)
Power consumption ≤ 75 mA at 24 V DC without output load
Initialization time ≤ 2 s
Protection class III
Connection type Round connector M12 x 1, 5-pin



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1059417

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Medium - Fluids

Measurement - Switch, Continuous

Design - Standard amplifier

Probe Type - Rod probe in hygienic design

Probe Length - 1,200 mm

Process Pressure - –1 bar to 16 bar

Process Temperature - –20 °C to +150 °C

Communication Interface - IO-Link

Supply Voltage - 12 V DC to 30 V DC

Power Consumption - ≤ 75 mA at 24 V DC without output load

Initialization Time - ≤ 2 s

Protection Class - III

Connection Type - Round connector M12 × 1, 5-pin

Output Signal - 1 × PNP + 1 × PNP/NPN + 4–20 mA / 0–10 V

Output Load - 4–20 mA: < 500 Ω at Uv > 13.5 V; 4–20 mA: < 400 Ω at Uv > 12 V; 0–10 V: > 750 Ω at Uv ≥ 14 V

Hysteresis - ≥ 2 mm

Not applicable for this product

EU Declaration of Conformity - ✔

UK Declaration of Conformity - ✔

ACMA Declaration of Conformity - ✔

Moroccan Declaration of Conformity - ✔

China RoHS - ✔

China Compulsory Product Certification (CCC) Exempt - ✔

FDA Certificate - ✔

cULus Certificate - ✔

ECLASS 5.1.4 - 27200513

ECLASS 6.0 - 27200513

ECLASS 7.0 - 27200513

ECLASS 8.0 - 27200513

ECLASS 9.0 - 27200513

ECLASS 10.0 - 27200513

ECLASS 11.0 - 27200513

ECLASS 12.0 - 27200513

ECLASS 13.0 - 27200513

ECLASS 14.0 - 27200513
