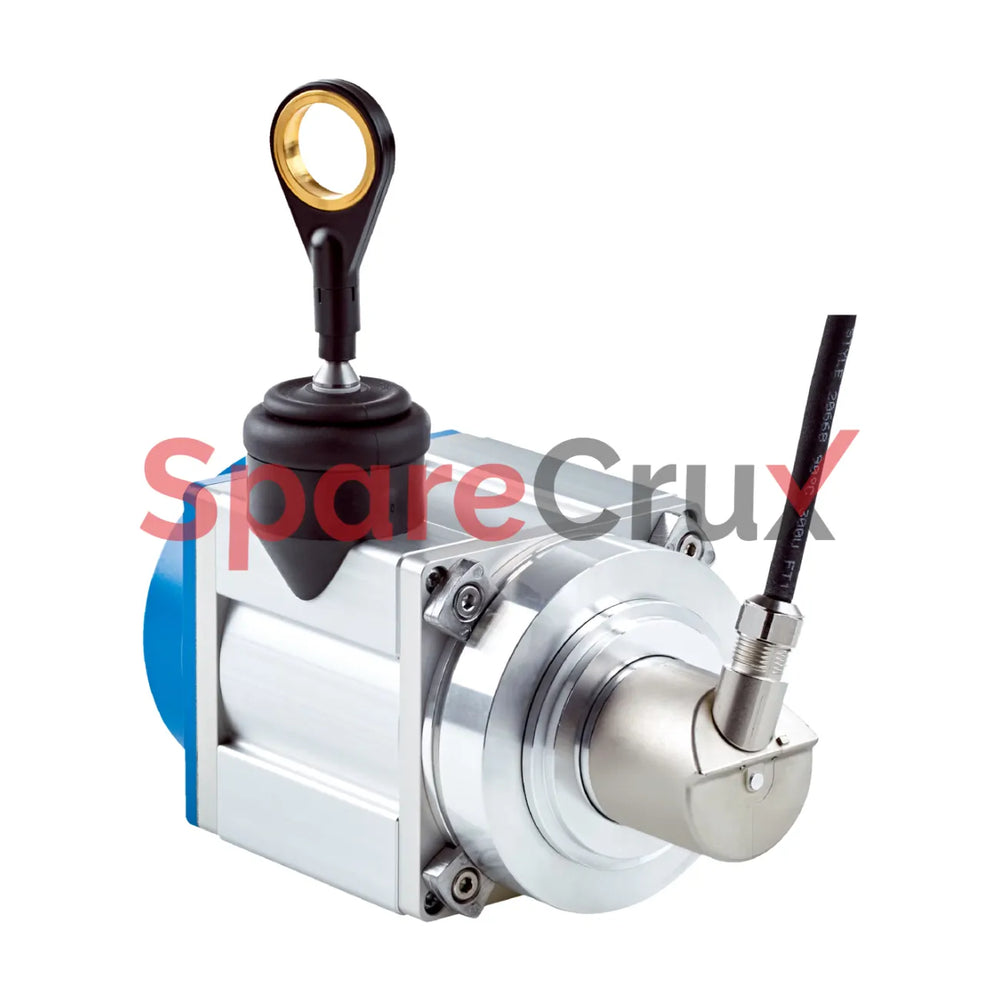

1097422 | SICK SENSORS | BTF13-A1MM0524 Wire Draw Encoder

₹ 198,392.92

₹ 168,129.60 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1097422

Original Equipment Manufacturer

SICK SENSORS

Description
Connection type Cable, 8-wire, universal, 5 m
Supply voltage 4.5 V DC ... 32 V DC
Weight 2.92 kg
Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A
Measuring wire diameter 1.35 mm
Weight (measuring wire) 7.1 g/m
Housing material, wire draw mechanism Aluminum (anodised), plastic
Spring return force 15 N ... 20 N 1)
Length of wire pulled out per revolution 334.1 mm
Life of wire draw mechanism Typ. 1,000,000 cycles 2) 3)
Actual wire draw length 5.2 m
Wire acceleration 70 m/s²
Operating speed 8 m/s
